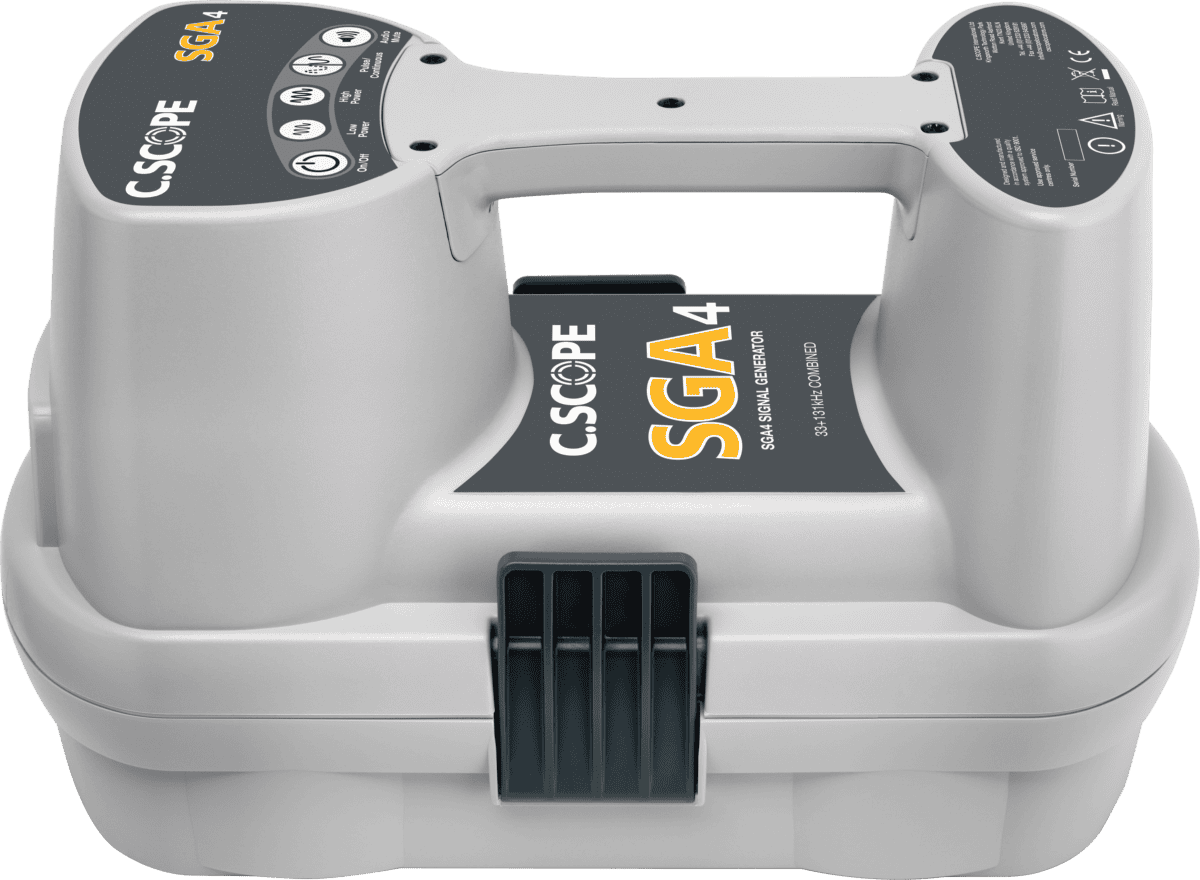

C.Scope SGA4 Signal Generator

The C.Scope SGA4 is an affordable Signal Generator designed for use alongside a CXL4 or DXL4 Cable Avoidance Tool. It enables significantly more underground utilities to be detected including street lighting cables.

The simultaneous dual-frequency 33kHz and 131kHz signal output of the Signal Generators is ideal for maximising the number of buried services that can be energised and then detected.

The SGA4 Signal Generator can apply the dual frequency signal without direct connection to buried services, using either a Signal Clamp or the simple induction method from ground level, providing a significant improvement in the detection of the smaller diameter or poorly earthed cables.

Get a Quote
Download Spec Sheet

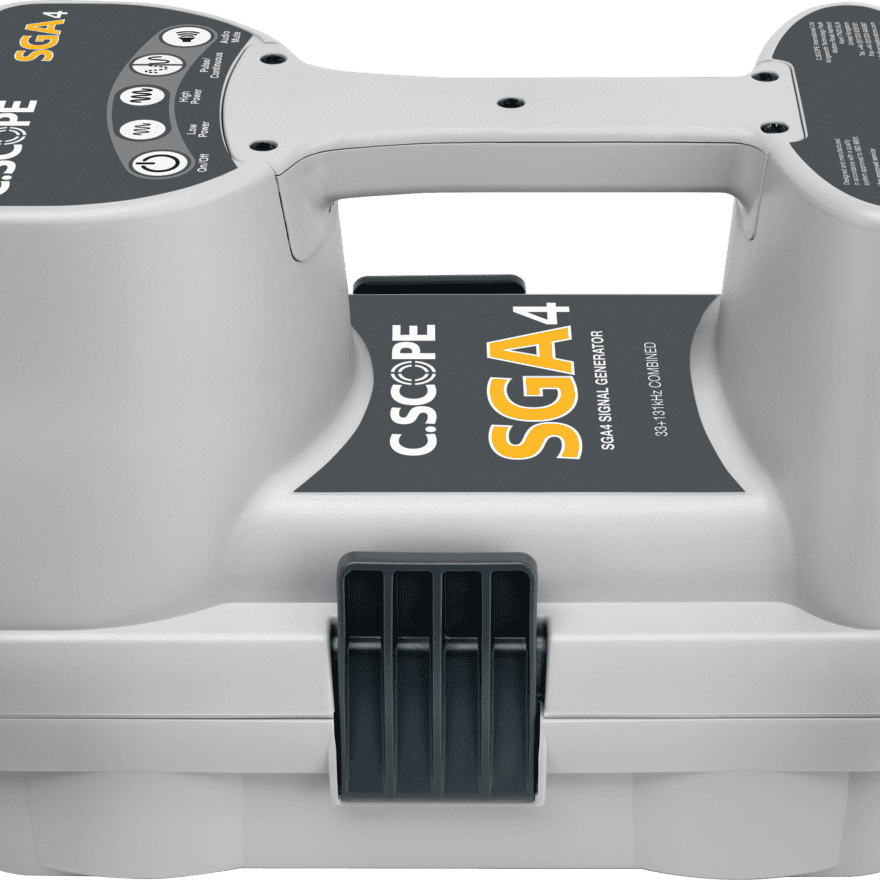

More about the SGA4 Signal Generator

The SGA4 offers three alternative ways to apply a Signal Generator signal:

Direct Connection allows specific pipes or cables to be individually traced, identified and their depths measured. The use of Signal Clamps, Signal Injectors and Direct Connection leads make this mode the most effective method for pinpointing pipes and cables.

If it is difficult or inconvenient to use Direct Connection, then the Wraparound technique can be utilised to successfully energise a street or car park lighting cable.

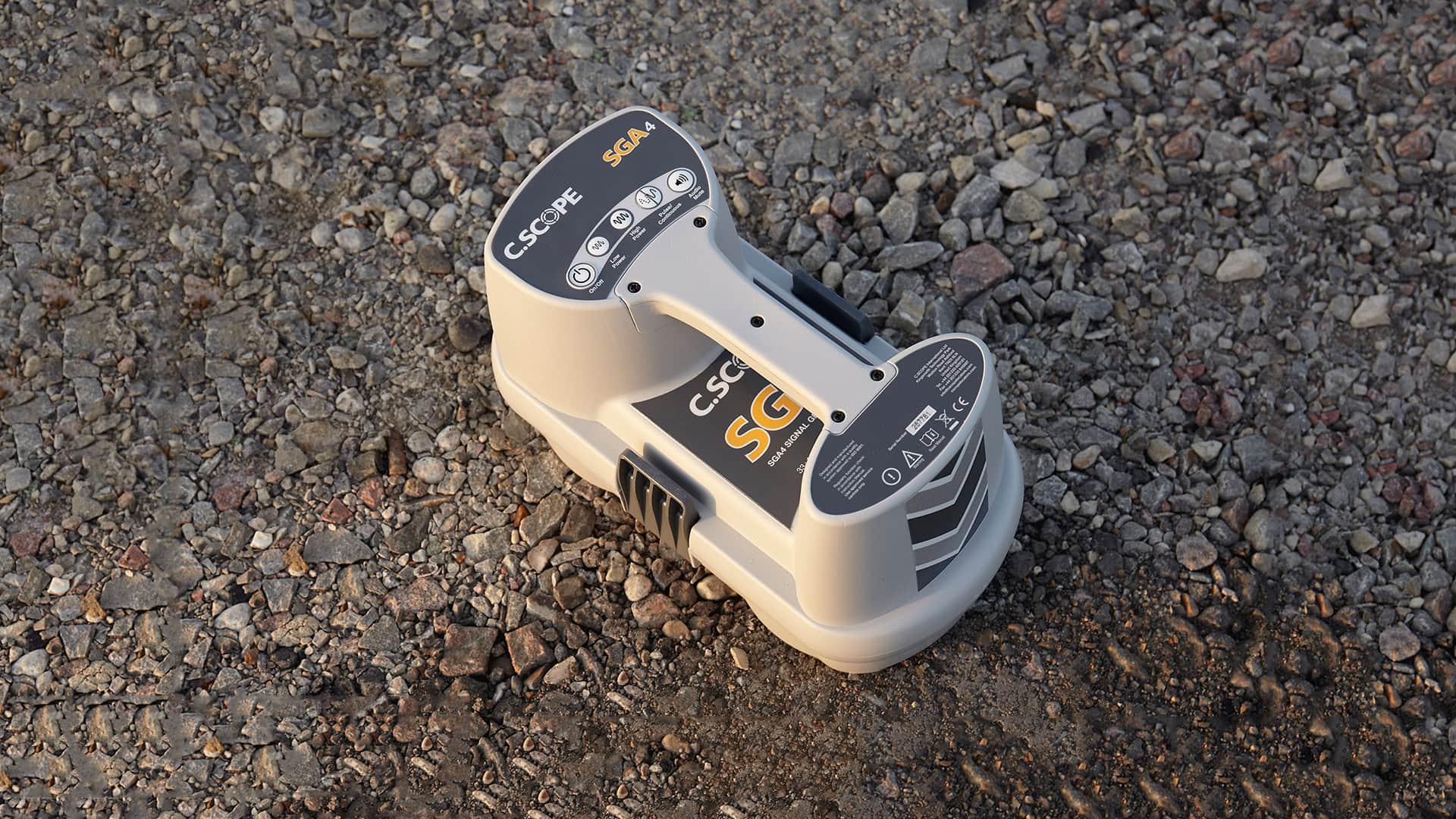

Induction allows the Signal Generator to induce a detectable and traceable signal to previously unknown, undetected or inaccessible underground metal pipes or cables.

SGA4 Signal Generator FEATURES

  • Adjustable One Watt Output energizes deeper pipes and cables over longer distances, with dual power levels for control.
  • Switchable pulsed signal for high interference areas, with an audible signal and audio mute.
  • Twin-wall construction ensures durability and IP65 dust/water protection.

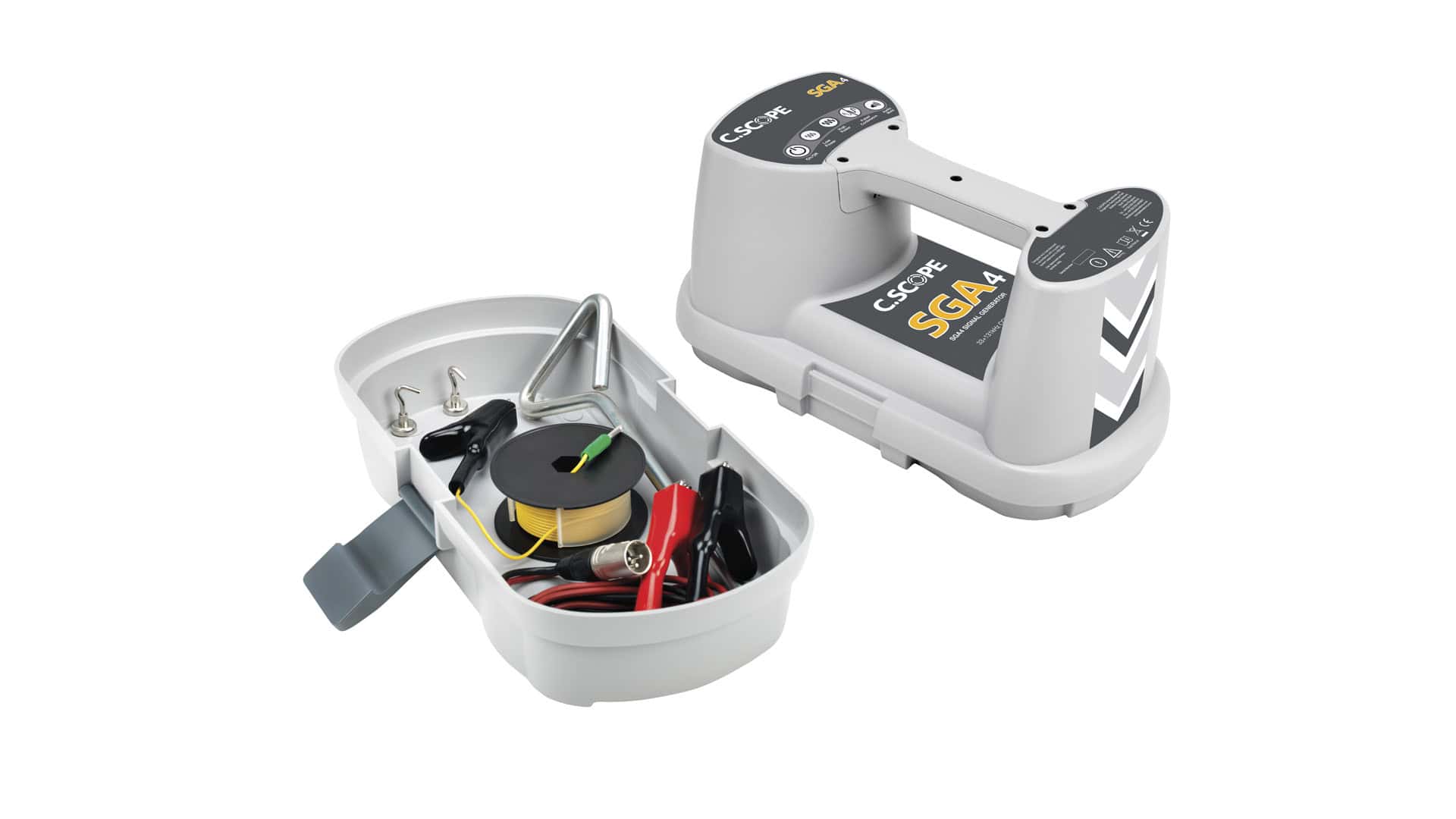

  • Detachable tray stores standard and optional accessories like Signal Clamps and Sondes.
  • No periodic Calibration required
  • Simultaneous 33+131kHz Signal
  • Maximum Output Voltage (open circuit) – 28V rms
  • Maximum Output Current (short circuit) – 65mA rms
  • Maximum Power – 1W into 400Ω load
