SLIDING GATES

Sliding gates come in a variety of designs such as Cantilever, Tracked or Telescopic. They are most commonly used when the installation does not suit a traditional swing gate, or when the opening is too large for an automated swing gate. For instance, limited space, uneven or sloping ground conditions are amongst the most common reasons for installing a sliding gate.

Get a Quote
Download Spec Sheet

SLIDING GATES - OPTIONS

  • Cantilever sliding gates
  • Telescopic sliding gates
  • Single leaf sliding gates

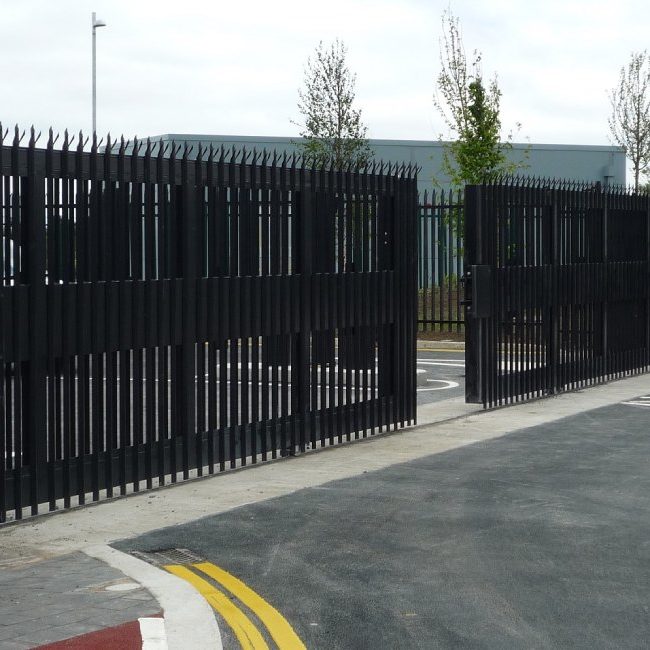

  • Bi-parting sliding gates
  • Tracked or trackless
  • Wide choice of infills

FEATURES & BENEFITS OF SLIDING GATES

  • Every gate is custom built to site specific requirements
  • Suitable for heavy duty applications
  • Quick opening / closing speeds (approx. 1800mm/sec)
  • 100% duty rating
  • Parallelogram or trapezium gate frames for sites with cross fall
  • Choice if gate infill – vertical bar as standard
  • No requirement for additional locking
  • Choice of access controls
  • Optional warning lights, audible warning devices

TECHNICAL INFORMATION

Suitable for openings up to 50 metres wide with a maximum height of 5 metres.
Suitable for continuous operation
Manual override in the event of power failure
Anti-runaway brake available for sloping gates
Key switch & emergency stop button mounted on drive post
Fully programmable control panel
Gate locking achieved by the drive system
Standard fail safe system as required under H&S regulations
Gate systems are CE marked and manufactured to conform with the latest European Safety Regulations.

APPLICATIONS

Commercial Premises

Commercial Premises

Industrial Sites

Industrial Sites

Apartment Complexes

Apartment Blocks

Sites with space restrictions

Sites with space restrictions

Frequently Asked Questions

Can you put an automatic gate on a slope or hill?

Uneven or sloping ground conditions are one of the reasons for installing a sliding gate. You could also consider a double leaf swing gate system. However, it all depends on the direction of the slope, the gradient and surrounding ground conditions. At Breezemount, our specialist team will help you to choose the right system. Every one of Breezemount’s electric gate systems are custom built to suit our client’s exact requirements.

What is a sliding gate called?

Sliding gates are also referred to in the industry as tracked gates or cantilever gates. The main difference is how the gate is supported, the location of the wheels and how the gate(s) run along.

What is a tracked gate?

Tracked sliding gates run along a fixed track that is cast into the ground. The tracks protrude above the finished road surface by approx. 10-15mm. Wheels mounted on the base of the gate frame guide the gate along the track, with a guide rail across the top frame. The drawback is that the ground track needs to be kept clear of debris which can impair the smooth operation of the gate(s).

What is a cantilever gate?

A cantilever gate is a trackless gate system that requires little or no groundwork. Instead of sliding along a track in the ground, a cantilever gate is designed to counterbalance on horizontal posts which removes the need for tracking. The overall length of the gate will be around 50 percent greater than the entrance that it spans on your site, and will need a runback area.

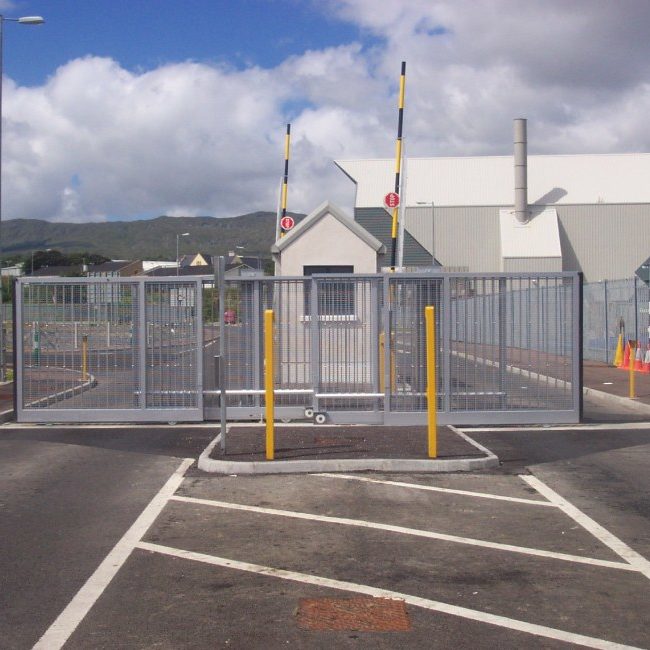

What is a telescopic gate?

An alternative tracked gate design, telescopic gates are ideal for entrances where runback space is limited. They are made up of two or more panels that move simultaneously along a ground track. When the gates are open, the panels stack one in front of each other, at one side concertina style. Available with up to 5 sections, a telescopic gate can span an entrance up to 25 metres wide and 5 metres in height.

Are swing gates better than sliding gates?

There are pros and cons to both and unfortunately one gate design does not fit all sites. Swing gates are usually less expensive than sliding gates, as they are a simpler design with fewer parts than a sliding gate. Generally, swing gates are quieter than sliding gates and require less maintenance and repair. However, if space is limited or if you have uneven or sloping ground, swing gates may not be an option and a telescopic or bifold gate may be more suitable for your application. Swing gates are less secure than a sliding gate and can be affected by adverse weather conditions.

How much space do you need for a sliding gate?

Suitable for openings up to 20-30 metres wide with a maximum height of 5 metres, sliding gates are available as single leaf, bi-parting pairs or telescopic stacking panels. Generally, the space required to accommodate a tracked sliding gate’s opening size is the same as the width that it covers. An eight-metre-wide entrance would need to have 8 metres on one side for gate storage and about 0.5 metres to allow manoeuvrability around the gate frame. A cantilever gate needs to be approximately 50 percent wider than its span to counterbalance the weight of the suspension posts.

If you would like more information on Breezemounts’ range of custom-made gates, please do not hesitate to contact us. We are more than happy for one of our sales staff to meet you on site and discuss your gate requirements, as well as provide you with a free no-obligation quote.
