JCB HYDRAULIC POWERPACKS & BREAKERS

Thanks to their excellent power-to-weight ratio, JCB hydraulic breakers will give amongst the best performance of any type of breaker in their class.

The HM25 Breaker uses patented JCB technology to reduce hand arm vibration, whilst the introduction of the new power cells increases the overall power of the breaker.

Get a Quote
Download Spec Sheet

KEY FEATURES:

  • Improve operator comfort and control from the immediate response trigger
  • Compact design making it easier to use and transport
  • Practical handle protection gives long service life
  • Handles are supported by an active hydraulic suspension system

What Is A Hydraulic Powerpack and Breaker?

A Hydraulic Breaker is an essential tool for construction able to break up the toughest of materials. Allowing for the creation of down piping channels, removal of tile, or breaking through asphalt on road works projects.

Hydraulic powerpacks for your breaker give greater power and reliability than electric or pneumatic options.

How Do Hydraulic Powerpacks and Breakers Work?

A Hydraulic powerpack is a self-contained unit which transfers energy via liquid, in this case oil. This transfer of energy creates rotary motion and force which in turn powers the breaker. The rotary motion caused by the liquid transfer powers the internal hammer of the breaker, driving the chisel up and down to break up materials. The oil used in the creation of energy also lubricates the system, meaning a longer life for the powerpack and breaker.

This system, unlike ones powered by electricity, does not need to be plugged in at a power point, meaning greater access to any area of the site.

POWERPACK MODELS:

  • Compact
  • Beaver
  • Beaver Diesel
  • Trojan
  • Multiflow

Hydraulic Powerpacks and Breakers Available At Breezemount

JCB Hydraulic Power Packs Available at Breezemount

  • Compact – Small but powerful and able to power the D-pick, T-Pick, and HM22.
  • Beaver & Beaver Diesel – Lightweight (66kg & 83kg) but able to power the full range of JCB breakers.
  • Trojan – Heavy duty with increased power for heavier breaking projects with 20 or 30lpm outputs. Able to power the full range of JCB breakers.
  • Multiflow – The best of both with portability and power, able to change hydraulic flow between 20, 30, and 40lpm to power the full range of breakers.

JCP Breakers Available at Breezemount

  • D Pick – Perfect light demolition, for trenching and tunnelling work.
  • T Pick – Small and lightweight for light-to-medium breaking jobs.
  • HM22 – A medium-duty breaker for concrete and asphalt breaking.
  • HM25 – A high power breaker perfect for use with the JCB Beaver powerpack. Offers reduced hand-arm vibration with patented JCB technology.
  • HM29 – Designed for heavy-duty jobs such as asphalt, concrete and heavy roadworks.

BREAKER MODELS:

  • D Pick
  • T Pick
  • HM22
  • HM25
  • HM29

Key Features of The JCB Hydraulic Powerpacks and Breakers

Offering greater power with less weight, the JCB Haudralic Powerpacks and Breakers range give some of the best performance of any breaker system in the market. Avoid the hassle of plugging in or moving heavy weight systems with a hydraulic powerpack. Key features of the JCB Hydraulic Powerpacks and Breakers are:

  • The immediate response trigger gives increased comfort and control to the user.
  • This system is compact and lightweight making it easier to move around the site and to use in any area. It also does not require an external power source meaning it can be used at remote locations.
  • Hydraulic power transmits 80% of the power to the tool, giving the power of a 40kg pneumatic unit in a smaller and compact unit.
  • The practical handle protection and lubrication of the powerpack gives long service life and reduces wear.
  • Handles are supported by an active hydraulic suspension system for ease of use.

Technical Information About The JCB Hydraulic Powerpacks and Breakers

Below we have outlined some technical information about the JCB Hydraulic Powerpacks and Breakers at Breezemount. If you have any questions about the information below or to enquire about our JCB Hydraulic Powerpacks and breakers, please contact a member of our team.

JCB Powerpacks

  • Engines: Each JCB powerpack uses a different engine for its needs; these include: Honda GX160, Honda GX240, Lombardini 15LD, Honda GX390, Briggs & Stratton Vanguard.
  • Fuel: Petrol
  • Power HP: Power ranges from 5.5 (Compact) to 18 (Multi-flow)
  • Hydraulic Flow (litres/minute): Ranging from 0-20lpm to 0-40lpm.
  • Max Pressure Bar (psi): The Compact has 87psi and the rest of the range has 138psi.
  • Weight: Ranging from 57.5kg (Compact) to 102 (Multi-Flow)

JCB Breakers

  • Weight: Ranging from 15kg (D-Pick & T-Pick) to 29kg (HM29)
  • Tool/Chisel Size: Ranging from 22mm to 32mm
  • Hydraulic Flow: Ranging from 15-22lpm to 28-32
  • Pressure Range Bar: Ranging from 50-65psi to 90-110psi.

GALLERY

Breezemount Construction Equipment
Breezemount Construction Equipment

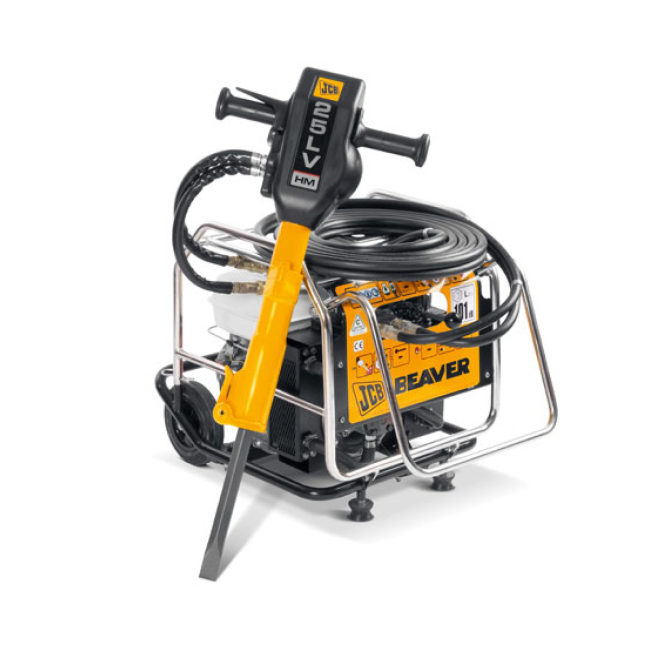

JCB Hydraulic Powerpack & Breaker

Are You Interested In Learning More About The JCB Hydraulic Powerpacks and Breakers?

For more information on the range of JCB Powerpacks and Breakers on offer here at Breezemount, please feel free to contact us and one of our team will be happy to assist you with your enquiry.

Our team is available to meet you on site to review your needs as well as providing you with a quote.
